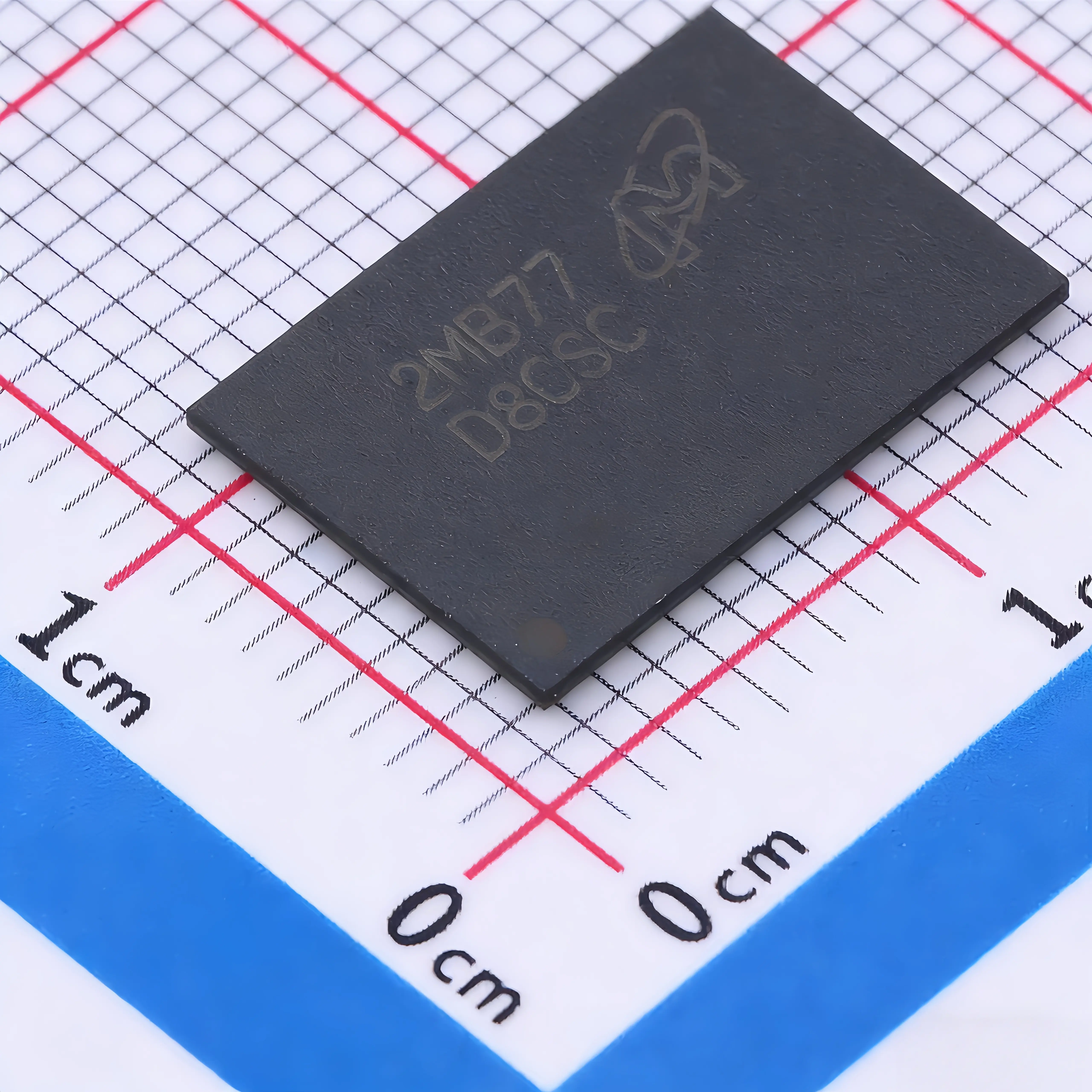

Date code: 25+ MT53E512M32D1ZW-046 WT:B Functional Description (English) The MT53E512M32D1ZW-046 WT:B is a Micron industrial-grade unified LPDDR4/LPDDR4X SDRAM in a single-die package, organized as 512M × 32-bit (16 Gbit) total density. It is optimized for high-bandwidth, low-power operation in industrial embedded systems, IoT gateways, ruggedized controllers, and mid-range consumer electronics, delivering stable and reliable performance across an extended industrial temperature range. Core Functional Overview
This device serves as high-speed volatile random-access memory for industrial SoCs, embedded processors, and power-constrained rugged platforms, supporting a data rate of 4266 MT/s with a 2.133 GHz clock frequency and a clock cycle time of tCK = 0.46 ns (speed grade -046). It adopts a 16n-prefetch DDR architecture with 8 internal banks per channel, enabling concurrent high-bandwidth burst read/write operations (BL16/BL32, programmable on-the-fly) to meet the high-throughput requirements of industrial applications.
With a single-die configuration, it delivers 16 Gbit density in a compact form factor, ideal for space-constrained industrial PCBs. It operates at ultra-low unified LPDDR4/LPDDR4X voltages, effectively reducing power consumption and adapting to the strict power budget of industrial embedded systems: VDD = 1.8V (nominal, 1.70–1.95V), VDD2 = 1.1V (nominal, 1.06–1.17V), and VDDQ = 0.6V (LPDDR4X) or 1.1V (LPDDR4).
It supports the full LPDDR4/LPDDR4X command set, including Active, Read, Write, Precharge, Auto-Refresh, and Self-Refresh, along with advanced power-saving features. Key power-saving functions include Partial-Array Self-Refresh (PASR), temperature-compensated self-refresh (controlled by an on-chip temperature sensor), directed per-bank refresh for concurrent operation, clock stop, and deep power-down modes, which minimize idle power consumption without sacrificing performance.
To ensure reliable operation in harsh industrial environments, the device is equipped with robust signal integrity and reliability features: on-die termination (ODT, programmable VSS termination), selectable output drive strength, Data Bus Inversion (DBI) to reduce I/O power and improve signal quality, bidirectional differential data strobe (DQS) per byte lane for reliable high-speed data capture, and single-ended CK/CA support to simplify system design.
