Description

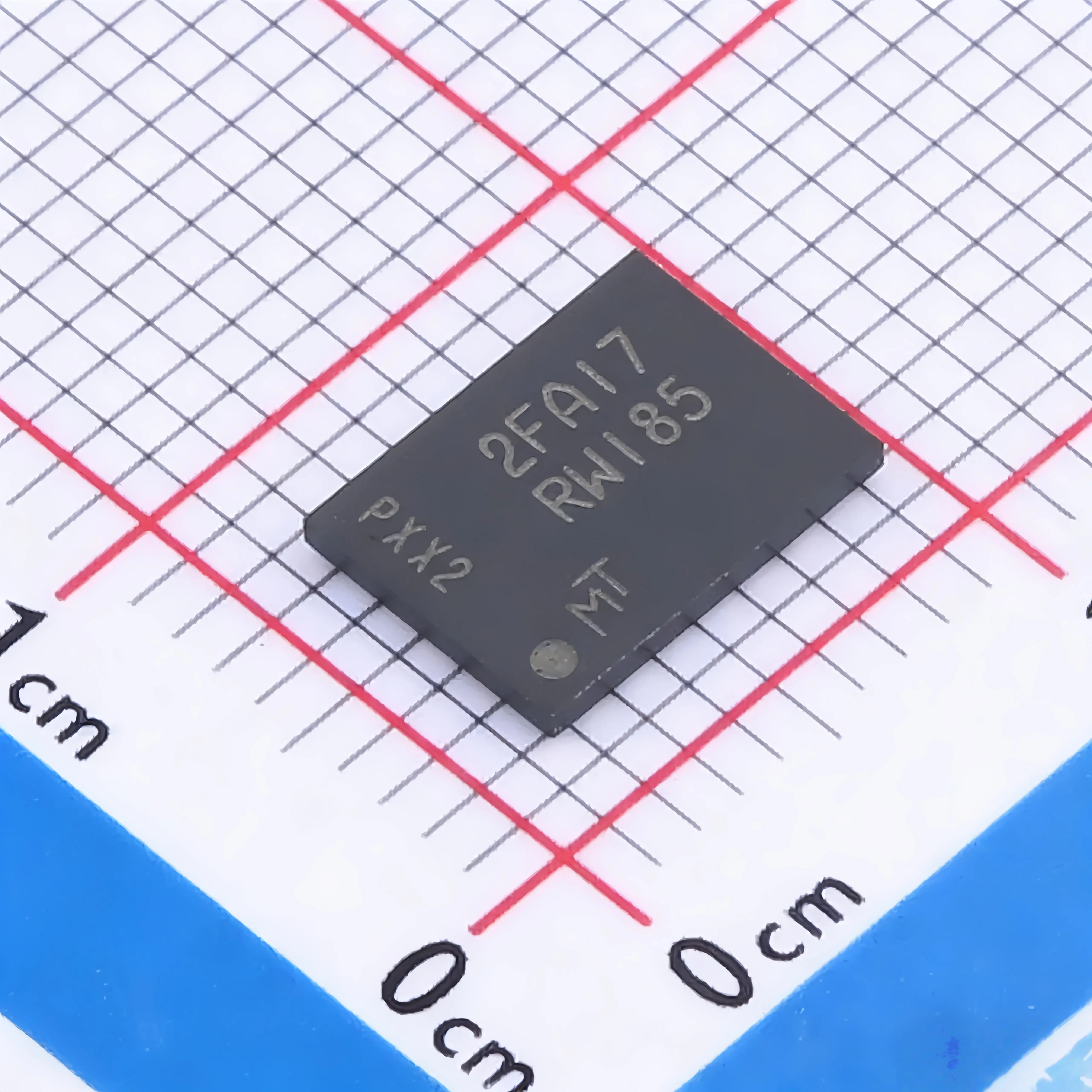

MT25QL01GBBB8E12-0SIT is a Micron 1Gbit (128MB) 3V Multi‑I/O Serial NOR Flash Memory with a 128M×8 organization, stacked with two 512Mb dies, packaged in a 24‑ball T‑PBGA (TBGA). It operates at 133MHz clock frequency and supports x1/x2/x4 I/O modes for high‑speed data transferMicron.
Core Features & Functionality
Interface & Performance
SPI‑compatible serial bus interface with dual/quad I/O commands for up to 90MB/s throughput.
Supports standard SPI, dual I/O, quad I/O, and extended I/O protocols.
Execute‑in‑Place (XIP) capability for direct code execution from flash.
Program/Erase Suspend operations for concurrent read/write tasks.
Memory Organization
1Gbit density (128MB), configured as 128M×8 bits.
64KB main sectors with 4KB and 32KB sub‑sector erase granularity.
3‑byte and 4‑byte address modes for full memory access.
Voltage & Power
Supply voltage: 2.7V to 3.6V (3.0V nominal).
Ultra‑low standby current (typically <1μA) and deep power‑down mode.
Software reset and volatile/non‑volatile configuration registers.
Reliability & Security
Industrial‑grade temperature range: -40°C to +85°C (SIT).
Advanced write protection: sector‑level protection, non‑volatile configuration lock, and password protection.
CRC data integrity check and high endurance: 100,000 program/erase cycles.
20‑year data retention at +85°C.
Package & Qualification
24‑ball T‑PBGA (6.0mm × 8.0mm × 1.20mm) packageMicron.
RoHS‑compliant “green” packaging and MSL 3 moisture sensitivity level.
Key Specifications
Parameter Value
Density 1 Gbit (128 MB)
Organization 128M × 8 bits
Interface SPI (x1/x2/x4)
Clock Frequency 133 MHz
Throughput Up to 90 MB/s (Quad I/O)
Supply Voltage 2.7V – 3.6V
Package 24‑ball T‑PBGA
Temperature Grade SIT (-40°C to +85°C)
Endurance 100,000 P/E cycles
Data Retention 20 years @ +85°C
