Description

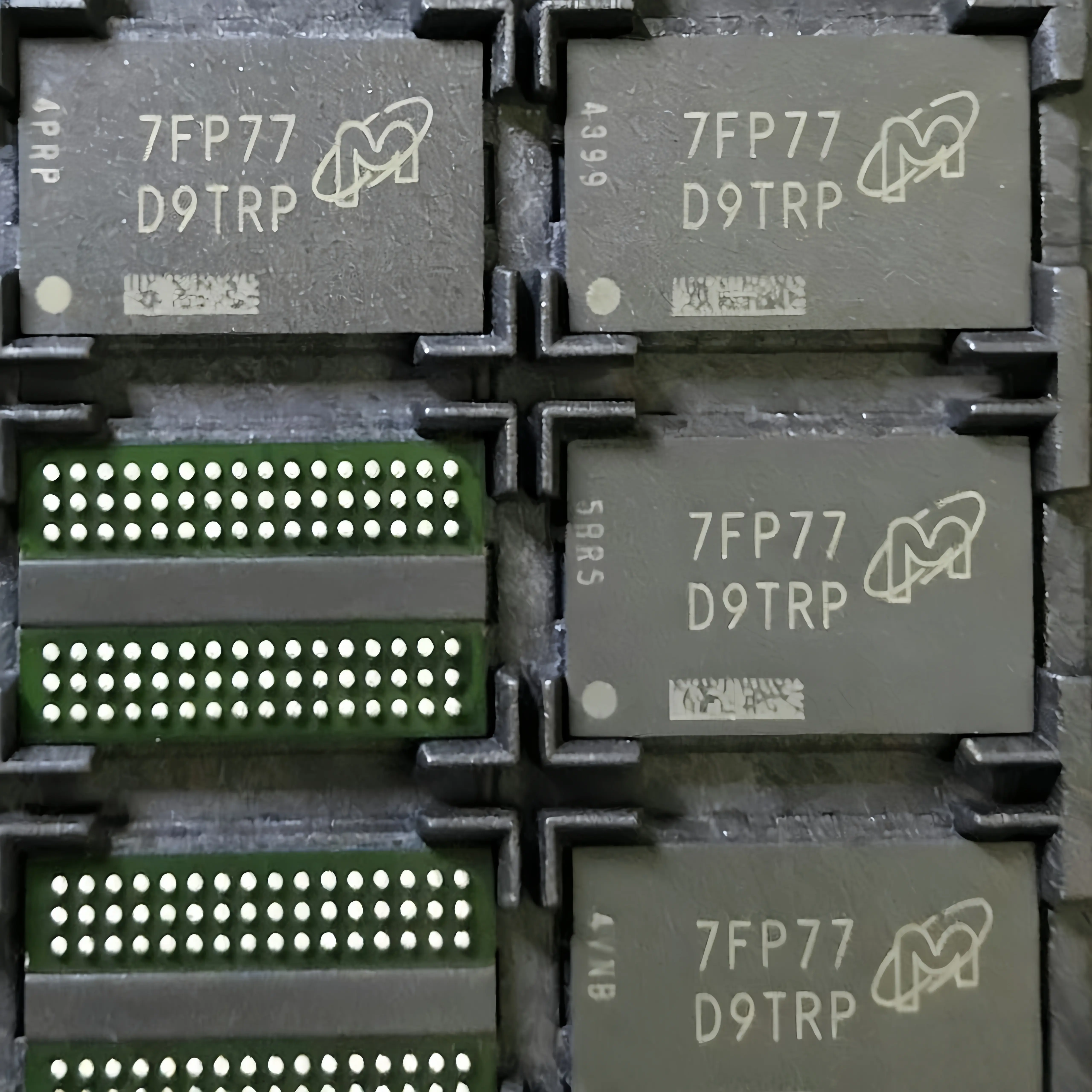

MT41K256M16TW-107 XIT:P is a Micron 4Gb (512MB) industrial‑grade DDR3L SDRAM organized as 256M × 16 bits, featuring Premium Lifecycle Product (PLP) status for long‑term availabilityMicron.
Core Features
Memory Architecture: 8n‑prefetch DDR3L architecture; 8 internal banks for high‑bandwidth parallel access.
Speed & Timing: 1866 MT/s data rate (933 MHz clock); speed grade ‑107 (tCK = 1.07 ns); CL=9 (CAS Latency).
Interface: 16‑bit SSTL_15 I/O with on‑die termination (ODT) and ZQ calibration for robust signal integrity.
Burst Operation: Programmable burst lengths BL8 and BC4; supports auto precharge for efficient burst access.
Voltage: 1.35V nominal supply (VDD = VDDQ = 1.35V, 1.283V–1.45V); backward compatible with 1.5V systems.
Power Management: Supports self‑refresh (SRT), automatic self‑refresh (ASR), partial array self‑refresh, and multiple power‑down modes.
Temperature Grade: XIT:P – ‑40°C to +95°C industrial temperature range; Premium Lifecycle Product for extended product availabilityMicron.
Reliability: JEDEC compliant, RoHS‑compliant, MSL 3 (168 hours), and designed for high‑reliability industrial/embedded systems.
Package: 96‑ball FBGA (8×14 mm, 0.8 mm pitch) with Sn/Ag/Cu terminal finish.
Key Specifications
Density: 4 Gbit (512 MB)
Organization: 256M × 16 bits
Data Rate: 1866 MT/s
Voltage: 1.35V (1.5V compatible)
Temperature: -40°C to +95°C (XIT:P, PLP)
Package: 96‑FBGA
